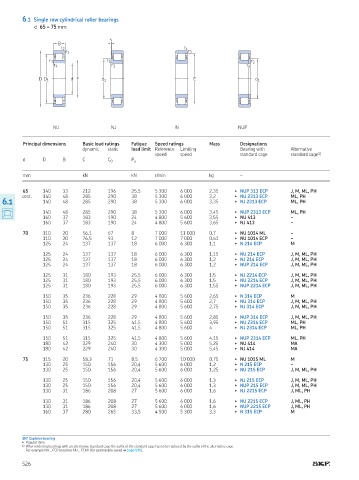

6.1 Single row cylindrical roller bearings
d 65 – 75 mm

s
B
r 2 r 4
r 1 r 3
r 3 r 1 r 3
r 4 r 2 r 4

D D 1 d F d 1 E d 1

NU NJ N NUP

Principal dimensions Basic load ratings Fatigue Speed ratings Mass Designations
dynamic static load limit Reference Limiting Bearing with Alternative
speed speed standard cage standard cage 1)
d D B C C 0 P u

mm kN kN r/min kg –

65 140 33 212 196 25,5 5 300 6 000 2,35 ▶ NUP 313 ECP J, M, ML, PH

cont 140 48 285 290 38 5 300 6 000 3,2 ▶ NU 2313 ECP ML, PH
6.1 140 48 285 290 38 5 300 6 000 3,35 ▶ NJ 2313 ECP ML, PH

140 48 285 290 38 5 300 6 000 3,45 ▶ NUP 2313 ECP ML, PH
160 37 183 190 24 4 800 5 600 3,55 ▶ NU 413 –
160 37 183 190 24 4 800 5 600 3,65 ▶ NJ 413 –

70 110 20 56,1 67 8 7 000 11 000 0,7 ▶ NU 1014 ML –
110 20 76,5 93 12 7 000 7 000 0,61 ▶ NU 1014 ECP –
125 24 137 137 18 6 000 6 300 1,1 ▶ N 214 ECP M

125 24 137 137 18 6 000 6 300 1,15 ▶ NU 214 ECP J, M, ML, PH
125 24 137 137 18 6 000 6 300 1,2 ▶ NJ 214 ECP J, M, ML, PH
125 24 137 137 18 6 000 6 300 1,2 ▶ NUP 214 ECP J, M, ML, PH

125 31 180 193 25,5 6 000 6 300 1,5 ▶ NJ 2214 ECP J, M, ML, PH
125 31 180 193 25,5 6 000 6 300 1,5 ▶ NU 2214 ECP J, M, ML, PH
125 31 180 193 25,5 6 000 6 300 1,55 ▶ NUP 2214 ECP J, M, ML, PH

150 35 236 228 29 4 800 5 600 2,65 ▶ N 314 ECP M
150 35 236 228 29 4 800 5 600 2,7 ▶ NU 314 ECP J, M, ML, PH
150 35 236 228 29 4 800 5 600 2,75 ▶ NJ 314 ECP J, M, ML, PH

150 35 236 228 29 4 800 5 600 2,85 ▶ NUP 314 ECP J, M, ML, PH
150 51 315 325 41,5 4 800 5 600 3,95 ▶ NU 2314 ECP ML, PH
150 51 315 325 41,5 4 800 5 600 4 ▶ NJ 2314 ECP ML, PH

150 51 315 325 41,5 4 800 5 600 4,15 ▶ NUP 2314 ECP ML, PH
180 42 229 240 30 4 300 5 000 5,25 ▶ NU 414 MA
180 42 229 240 30 4 300 5 000 5,45 ▶ NJ 414 MA

75 115 20 58,3 71 8,5 6 700 10 000 0,75 ▶ NU 1015 ML M
130 25 150 156 20,4 5 600 6 000 1,2 ▶ N 215 ECP –
130 25 150 156 20,4 5 600 6 000 1,25 ▶ NU 215 ECP J, M, ML, PH

130 25 150 156 20,4 5 600 6 000 1,3 ▶ NJ 215 ECP J, M, ML, PH
130 25 150 156 20,4 5 600 6 000 1,3 ▶ NUP 215 ECP J, M, ML, PH
130 31 186 208 27 5 600 6 000 1,6 ▶ NJ 2215 ECP J, ML, PH

130 31 186 208 27 5 600 6 000 1,6 ▶ NU 2215 ECP J, ML, PH
130 31 186 208 27 5 600 6 000 1,6 ▶ NUP 2215 ECP J, ML, PH
160 37 280 265 33,5 4 500 5 300 3,3 ▶ N 315 ECP M

SKF Explorer bearing
▶ Popular item
1) When ordering bearings with an alternative standard cage the sufix of the standard cage has to be replaced by the sufix of the alternative cage
For example NU ECP becomes NU ECML (for permissible speed † page 511)
