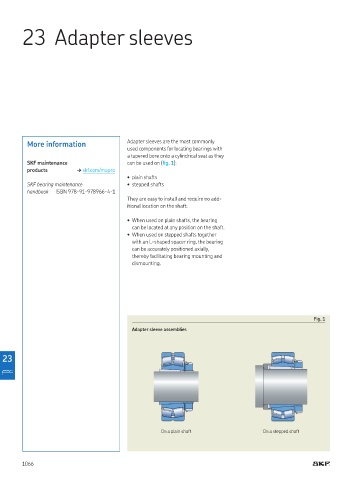

23 Adapter sleeves

More informatione information Adapter sleeves are the most commonly
Mor
used components for locating bearings with
a tapered bore onto a cylindrical seat as they
SKF
Bearing life and load ratings maintenance 63 can be used on (ig. 1):
products † skf com/mapro
Design considerations 59 • plain shafts
Bearing systems bearing maintenance
SKF 160 • stepped shafts
169
handbook
Recommended its ISBN 978-91-978966-4-1
Abutment and illet dimensions 208 They are easy to install and require no add-
itional location on the shaft:
Lubrication 239
• When used on plain shafts, the bearing
Mounting, dismounting and can be located at any position on the shaft
bearing care 271 • When used on stepped shafts together
Mounting instructions for with an L-shaped spacer ring, the bearing
individual bearings † skf com/mount can be accurately positioned axially,
SKF bearing maintenance thereby facilitating bearing mounting and
handbook (ISBN 978-91-978966-4-1) dismounting

Fig. 1
Adapter sleeve assemblies

23

On a plain shaft On a stepped shaft

1066
