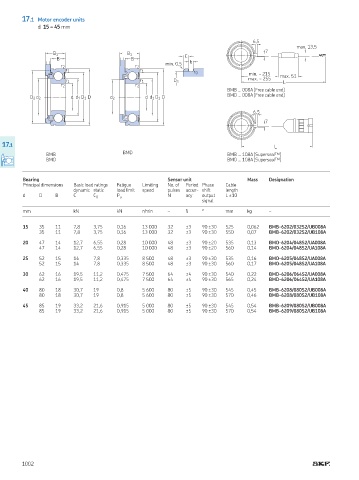

Page 1004 - Rollingbearings

product table Product table

17.1 Motor encoder units
d 15 – 45 mm

6,5
max. 13,5
7
B 1 B 1 C
B B
min. 0,5 b
r 2 r 2
r 1 r 1
r 0
min. ~ 215
max. ~ 255 max. 51
r 1 r 1 D 3 L
r 2 r 2
BMB 008A (Free cable end)
BMO 008A (Free cable end)
D 2 d 2 d d 1 D 1 D d 2 d d 1 D 1 D
6,5
7

1 L
0.07.1
BMD
BMB BMB ... 108A (Superseal TM )
BMO BMO ... 108A (Superseal TM )

Bearing Sensor unit Mass Designation
Principal dimensions Basic load ratings Fatigue Limiting No of Period Phase Cable
dynamic static load limit speed pulses accur- shift length
d D B C C 0 P u N acy output L ±10
signal
mm kN kN r/min – % ° mm kg –

15 35 11 7,8 3,75 0,16 13 000 32 ±3 90 ±30 525 0,062 BMB-6202/032S2/UB008A
35 11 7,8 3,75 0,16 13 000 32 ±3 90 ±30 550 0,07 BMB-6202/032S2/UB108A

20 47 14 12,7 6,55 0,28 10 000 48 ±3 90 ±20 535 0,13 BMO-6204/048S2/UA008A
47 14 12,7 6,55 0,28 10 000 48 ±3 90 ±20 560 0,14 BMO-6204/048S2/UA108A

25 52 15 14 7,8 0,335 8 500 48 ±3 90 ±30 535 0,16 BMO-6205/048S2/UA008A
52 15 14 7,8 0,335 8 500 48 ±3 90 ±30 560 0,17 BMO-6205/048S2/UA108A

30 62 16 19,5 11,2 0,475 7 500 64 ±4 90 ±30 540 0,22 BMD-6206/064S2/UA008A
62 16 19,5 11,2 0,475 7 500 64 ±4 90 ±30 565 0,24 BMD-6206/064S2/UA108A

40 80 18 30,7 19 0,8 5 600 80 ±5 90 ±30 545 0,45 BMB-6208/080S2/UB008A
80 18 30,7 19 0,8 5 600 80 ±5 90 ±30 570 0,46 BMB-6208/080S2/UB108A

45 85 19 33,2 21,6 0,915 5 000 80 ±5 90 ±30 545 0,54 BMB-6209/080S2/UB008A
85 19 33,2 21,6 0,915 5 000 80 ±5 90 ±30 570 0,54 BMB-6209/080S2/UB108A

1002
