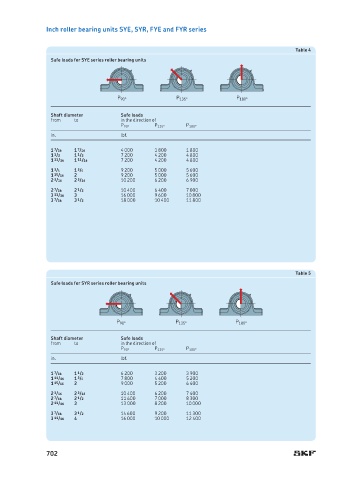

Inch roller bearing units SYE, SYR, FYE and FYR series

Table 4
Safe loads for SYE series roller bearing units

P 90° P 135° P 180°
Shaft diameter Safe loads
from to in the direction of
P 90° P 135° P 180°
in. lbf.

1 7 /16 1 7 /16 4 000 1 800 1 800
1 1 /2 1 1 /2 7 200 4 200 4 800
1 11 /16 1 11 /16 7 200 4 200 4 800
1 3 /4 1 3 /4 9 200 5 000 5 600
1 15 /16 2 9 200 5 000 5 600
2 3 /16 2 3 /16 10 200 6 200 6 900
2 7 /16 2 1 /2 10 400 6 400 7 000
3 11 /16 3 16 000 9 600 10 800
3 7 /16 3 1 /2 18 000 10 400 11 800

Table 5
Safe loads for SYR series roller bearing units

P 90° P 135° P 180°
Shaft diameter Safe loads
from to in the direction of
P 90° P 135° P 180°
in. lbf.

1 7 /16 1 1 /2 6 200 3 200 3 900
1 11 /16 1 3 /4 7 800 4 400 5 200
1 15 /16 2 9 000 5 200 6 400
2 3 /16 2 3 /16 10 400 6 200 7 400
2 7 /16 2 1 /2 11 600 7 000 8 300
2 11 /16 3 13 000 8 200 10 000
3 7 /16 3 1 /2 14 600 9 200 11 300
3 11 /16 4 16 000 10 000 12 400
