Sealing solutions

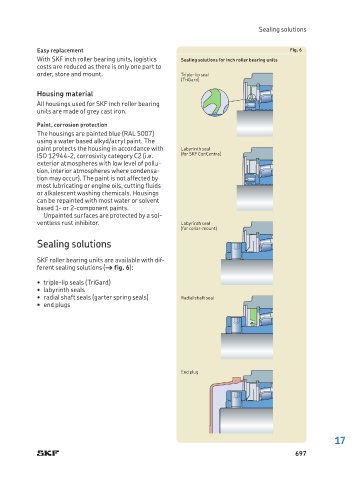

Easy replacement Fig. 6
With SKF inch roller bearing units, logistics Sealing solutions for inch roller bearing units
costs are reduced as there is only one part to
order, store and mount. Triple-lip seal
(TriGard)
Housing material
All housings used for SKF inch roller bearing
units are made of grey cast iron.

Paint, corrosion protection
The housings are painted blue (RAL 5007)
using a water based alkyd/acryl paint. The
paint protects the housing in accordance with Labyrinth seal
ISO 12944-2, corrosivity category C2 (i.e. (for SKF ConCentra)
exterior atmospheres with low level of pollu-
tion, interior atmospheres where condensa-
tion may occur). The paint is not affected by
most lubricating or engine oils, cutting fluids
or alkalescent washing chemicals. Housings
can be repainted with most water or solvent
based 1- or 2-component paints.
Unpainted surfaces are protected by a sol-
ventless rust inhibitor. Labyrinth seal
(for collar-mount)

Sealing solutions
SKF roller bearing units are available with dif-
ferent sealing solutions († fig. 6):
• triple-lip seals (TriGard)
• labyrinth seals
• radial shaft seals (garter spring seals) Radial shaft seal
• end plugs

End plug
