Design considerations

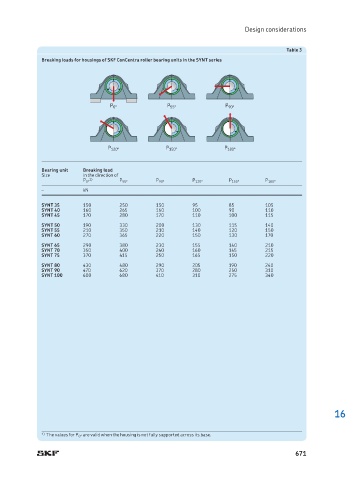

Table 3
Breaking loads for housings of SKF ConCentra roller bearing units in the SYNT series

P 0° P 55° P 9 0 °

P 120° P 150° P 180°

Bearing unit Breaking load
Size in the direction of
1) P 90°
P 0° P 55° P 120° P 150° P 180°
– kN
SYNT 35 150 250 150 95 85 105
SYNT 40 160 265 160 100 90 110
SYNT 45 170 280 170 110 100 115
SYNT 50 190 330 200 130 115 140
SYNT 55 210 350 210 140 120 150
SYNT 60 270 365 220 150 130 170
SYNT 65 290 380 230 155 140 210
SYNT 70 350 400 240 160 145 215
SYNT 75 370 415 250 165 150 220
SYNT 80 430 480 290 205 190 240
SYNT 90 470 620 370 280 250 310
SYNT 100 600 680 410 310 275 340

16

1) The values for P 0° are valid when the housing is not fully supported across its base.
