Sealing solutions

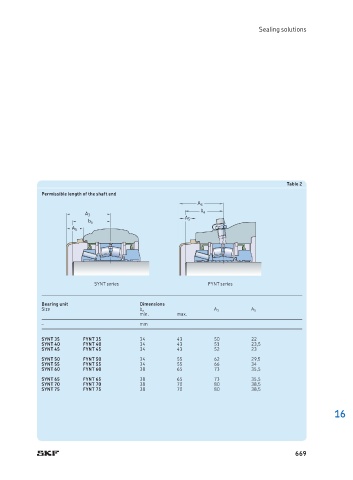

Table 2
Permissible length of the shaft end
A 3
b a
A 3
A 5
b a
A 5

SYNT series FYNT series

Bearing unit Dimensions
Size b a A 3 A 5
min. max.
– mm
SYNT 35 FYNT 35 34 43 50 22
SYNT 40 FYNT 40 34 43 51 23,5
SYNT 45 FYNT 45 34 43 52 23
SYNT 50 FYNT 50 34 55 62 29,5
SYNT 55 FYNT 55 34 55 66 34
SYNT 60 FYNT 60 38 65 73 35,5
SYNT 65 FYNT 65 38 65 73 35,5
SYNT 70 FYNT 70 38 70 80 38,5
SYNT 75 FYNT 75 38 70 80 38,5
