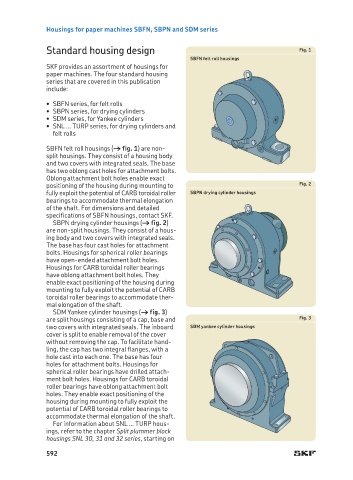

Housings for paper machines SBFN, SBPN and SDM series

Standard housing design Fig. 1
SBFN felt roll housings
SKF provides an assortment of housings for
paper machines. The four standard housing
series that are covered in this publication
include:
• SBFN series, for felt rolls
• SBPN series, for drying cylinders
• SDM series, for Yankee cylinders
• SNL … TURP series, for drying cylinders and
felt rolls
SBFN felt roll housings († fig. 1) are non-
split housings. They consist of a housing body
and two covers with integrated seals. The base
has two oblong cast holes for attachment bolts.
Oblong attachment bolt holes enable exact
positioning of the housing during mounting to Fig. 2
fully exploit the potential of CARB toroidal roller SBPN drying cylinder housings
bearings to accommodate thermal elongation
of the shaft. For dimensions and detailed
specifications of SBFN housings, contact SKF.
SBPN drying cylinder housings († fig. 2)
are non-split housings. They consist of a hous-
ing body and two covers with integrated seals.
The base has four cast holes for attachment
bolts. Housings for spherical roller bearings
have open-ended attachment bolt holes.
Housings for CARB toroidal roller bearings
have oblong attachment bolt holes. They
enable exact positioning of the housing during
mounting to fully exploit the potential of CARB
toroidal roller bearings to accommodate ther-
mal elongation of the shaft.
SDM Yankee cylinder housings († fig. 3)
are split housings consisting of a cap, base and Fig. 3
two covers with integrated seals. The inboard SDM yankee cylinder housings
cover is split to enable removal of the cover
without removing the cap. To facilitate hand-
ling, the cap has two integral flanges, with a
hole cast into each one. The base has four
holes for attachment bolts. Housings for
spherical roller bearings have drilled attach-
ment bolt holes. Housings for CARB toroidal
roller bearings have oblong attachment bolt
holes. They enable exact positioning of the
housing during mounting to fully exploit the
potential of CARB toroidal roller bearings to
accommodate thermal elongation of the shaft.
For information about SNL … TURP hous-
ings, refer to the chapter Split plummer block
housings SNL 30, 31 and 32 series, starting on

592
