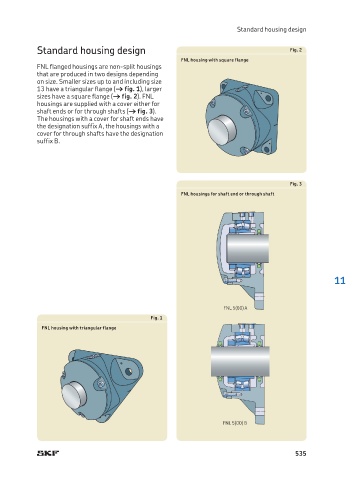

Standard housing design

Standard housing design Fig. 2
FNL housing with square flange
FNL flanged housings are non-split housings
that are produced in two designs depending
on size. Smaller sizes up to and including size
13 have a triangular flange († fig. 1), larger
sizes have a square flange († fig. 2). FNL
housings are supplied with a cover either for
shaft ends or for through shafts († fig. 3).
The housings with a cover for shaft ends have
the designation suffix A, the housings with a
cover for through shafts have the designation
suffix B.

Fig. 3
FNL housings for shaft end or through shaft

11

FNL 5(00) A
Fig. 1
FNL housing with triangular flange

FNL 5(00) B
