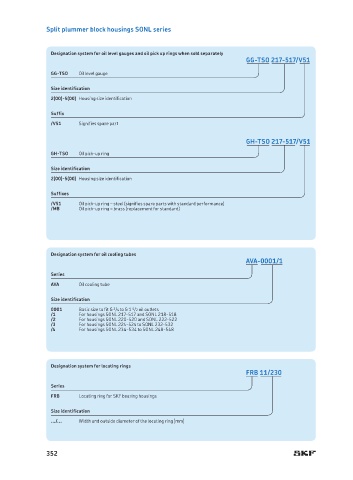

Split plummer block housings SONL series

Designation system for oil level gauges and oil pick up rings when sold separately
GG-TSO 217-517/V51

GG-TSO Oil level gauge
Size identification
2(00)-5(00) Housing size identification
Suffix
/V51 Signifies spare part
GH-TSO 217-517/V51
GH-TSO Oil pick-up ring

Size identification
2(00)-5(00) Housing size identification

Suffixes
/V51 Oil pick-up ring – steel (signifies spare parts with standard performance)
/MB Oil pick-up ring – brass (replacement for standard)

Designation system for oil cooling tubes
AVA-0001/1
Series
AVA Oil cooling tube
Size identification
0001 Basic size to fit G 3 /4 to G 1 1 /2 oil outlets
/1 For housings SONL 217-517 and SONL 218-518
/2 For housings SONL 220-520 and SONL 222-522
/3 For housings SONL 224-524 to SONL 232-532
/4 For housings SONL 234-534 to SONL 248-548

Designation system for locating rings
FRB 11/230
Series
FRB Locating ring for SKF bearing housings
Size identification
.../... Width and outside diameter of the locating ring [mm]
