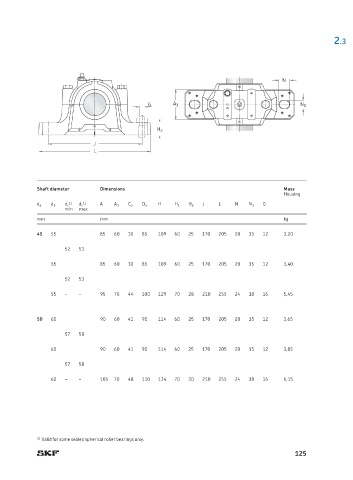

Page 129 - SKF-bearing-housings

2.3

N

G A 1 N 1

H 2
J
L

Shaft diameter Dimensions Mass
Ho using
1) 1) A H J L N G
d a d b d c d c A 1 C a D a H 1 H 2 N 1
min max
mm mm kg
45 55 85 60 30 85 109 60 25 170 205 20 15 12 3,20

52 53
55 85 60 30 85 109 60 25 170 205 20 15 12 3,40

52 53
55 – – 95 70 44 100 129 70 28 210 255 24 18 16 5,45

50 60 90 60 41 90 114 60 25 170 205 20 15 12 3,65

57 58
60 90 60 41 90 114 60 25 170 205 20 15 12 3,85
57 58

60 – – 105 70 48 110 134 70 30 210 255 24 18 16 6,15

1) Valid for some sealed spherical roller bearings only.

125
