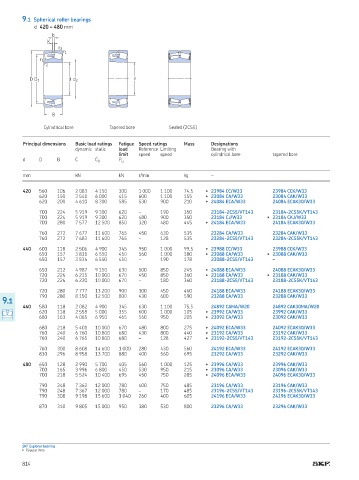

9.1 Spherical roller bearings
d 420 – 480 mm
b
K
r 2
r 1
r 1
r 2

D D 1 d d 2 d

B

Cylindrical bore Tapered bore Sealed (2CS5)

Principal dimensions Basic load ratings Fatigue Speed ratings Mass Designations
dynamic static load Reference Limiting Bearing with
limit speed speed cylindrical bore tapered bore
d D B C C 0 P u

mm kN kN r/min kg –

420 560 106 2 083 4 150 300 1 000 1 100 74,5 ▶ 23984 CC/W33 23984 CCK/W33
620 150 3 541 6 000 415 600 1 100 155 ▶ 23084 CA/W33 23084 CAK/W33
620 200 4 610 8 300 585 530 900 210 ▶ 24084 ECA/W33 24084 ECAK30/W33

700 224 5 919 9 300 620 – 190 350 23184-2CS5/VT143 23184-2CS5K/VT143
700 224 5 919 9 300 620 480 900 350 23184 CJ/W33 ▶ 23184 CKJ/W33
700 280 7 577 12 500 850 320 480 445 ▶ 24184 ECA/W33 24184 ECAK30/W33

760 272 7 677 11 600 765 450 630 535 23284 CA/W33 23284 CAK/W33
760 272 7 683 11 600 765 – 128 535 23284-2CS5/VT143 23284-2CS5K/VT143

440 600 118 2 506 4 900 345 950 1 000 99,5 ▶ 23988 CC/W33 23988 CCK/W33
650 157 3 831 6 550 450 560 1 000 180 ▶ 23088 CA/W33 ▶ 23088 CAK/W33
650 157 3 834 6 550 450 – 190 178 23088-2CS5/VT143 –
650 212 4 987 9 150 630 500 850 245 ▶ 24088 ECA/W33 24088 ECAK30/W33
720 226 6 215 10 000 670 450 850 360 ▶ 23188 CA/W33 ▶ 23188 CAK/W33
720 226 6 220 10 000 670 – 180 360 23188-2CS5/VT143 23188-2CS5K/VT143
720 280 7 777 13 200 900 300 450 460 24188 ECA/W33 24188 ECAK30/W33
790 280 8 150 12 500 800 430 600 590 23288 CA/W33 23288 CAK/W33
9.1
460 580 118 2 082 4 900 345 630 1 100 75,5 24892 CAMA/W20 24892 CAK30MA/W20
620 118 2 558 5 000 355 600 1 000 105 ▶ 23992 CA/W33 23992 CAK/W33
680 163 4 065 6 950 465 560 950 205 ▶ 23092 CA/W33 23092 CAK/W33

680 218 5 401 10 000 670 480 800 275 ▶ 24092 ECA/W33 24092 ECAK30/W33
760 240 6 760 10 800 680 430 800 440 ▶ 23192 CA/W33 23192 CAK/W33
760 240 6 765 10 800 680 – 128 427 ▶ 23192-2CS5/VT143 23192-2CS5K/VT143

760 300 8 608 14 600 1 000 280 430 560 24192 ECA/W33 24192 ECAK30/W33
830 296 8 958 13 700 880 400 560 695 23292 CA/W33 23292 CAK/W33

480 650 128 2 990 5 700 405 560 1 000 125 ▶ 23996 CA/W33 23996 CAK/W33
700 165 3 996 6 800 450 530 950 215 ▶ 23096 CA/W33 23096 CAK/W33
700 218 5 524 10 400 695 450 750 285 ▶ 24096 ECA/W33 24096 ECAK30/W33

790 248 7 362 12 000 780 400 750 485 23196 CA/W33 23196 CAK/W33
790 248 7 367 12 000 780 – 170 485 23196-2CS5/VT143 23196-2CS5K/VT143
790 308 9 198 15 600 1 040 260 400 605 24196 ECA/W33 24196 ECAK30/W33

870 310 9 805 15 000 950 380 530 800 23296 CA/W33 23296 CAK/W33

SKF Explorer bearing
▶ Popular item
