Bearing data

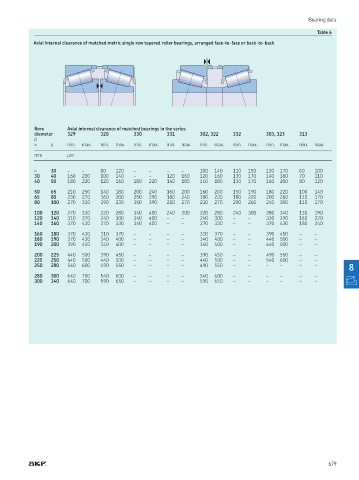

Table 6
Axial internal clearance of matched metric single row tapered roller bearings, arranged face-to-face or back-to-back

Bore Axial internal clearance of matched bearings in the series
diameter 329 320 330 331 302, 322 332 303, 323 313
d
> ≤ min. max. min. max. min. max. min. max. min. max. min. max. min. max. min. max.

mm µm

– 30 – – 80 120 – – – – 100 140 110 150 130 170 60 100
30 40 160 200 100 140 – – 120 160 120 160 130 170 140 180 70 110
40 50 180 220 120 160 180 220 140 180 140 180 130 170 160 200 80 120
50 65 210 250 140 180 200 240 160 200 160 200 150 190 180 220 100 140
65 80 230 270 160 200 250 290 180 240 180 220 180 220 200 260 110 170
80 100 270 310 190 230 350 390 210 270 210 270 200 260 240 300 110 170

100 120 270 330 220 280 340 400 240 300 220 280 240 300 280 340 130 190
120 140 310 370 240 300 340 400 – – 240 300 – – 330 390 160 220
140 160 370 430 270 330 340 400 – – 270 330 – – 370 430 180 240
160 180 370 430 310 370 – – – – 310 370 – – 390 450 – –
180 190 370 430 340 400 – – – – 340 400 – – 440 500 – –
190 200 390 450 340 400 – – – – 340 400 – – 440 500 – –
200 225 440 500 390 450 – – – – 390 450 – – 490 550 – –
225 250 440 500 440 500 – – – – 440 500 – – 540 600 – –
250 280 540 600 490 550 – – – – 490 550 – – – – – – 8
280 300 640 700 540 600 – – – – 540 600 – – – – – –
300 340 640 700 590 650 – – – – 590 650 – – – – – –
