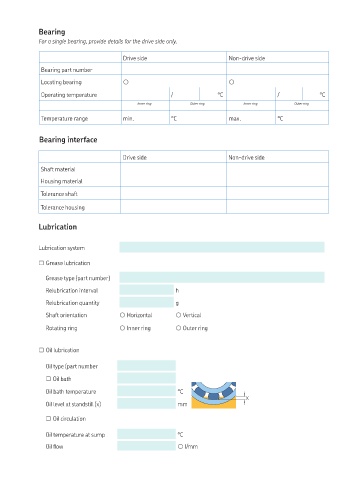

Bearing
For a single bearing, provide details for the drive side only.

Drive side Non-drive side

Bearing part number
Locating bearing ○ ○

Operating temperature / °C / °C
Inner ring Outer ring Inner ring Outer ring

Temperature range min. °C max. °C

Bearing interface

Drive side Non-drive side
Shaft material

Housing material

Tolerance shaft
Tolerance housing

Lubrication

Lubrication system

☐ Grease lubrication

Grease type (part number)

Relubrication interval h
Relubrication quantity g
Shaft orientation ○ Horizontal ○ Vertical

Rotating ring ○ Inner ring ○ Outer ring

☐ Oil lubrication

Oil type (part number

☐ Oil bath
Oil bath temperature °C
X
Oil level at standstill (x) mm

☐ Oil circulation

Oil temperature at sump °C

Oil flow ○ l/mm
