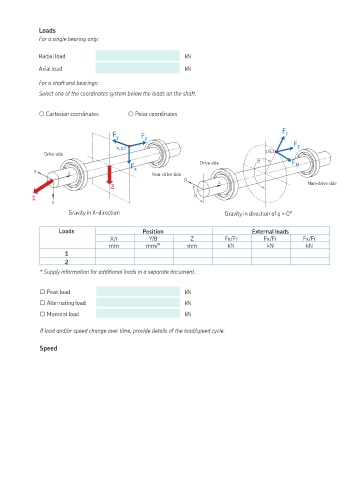

Page 1147 - Rollingbearings

Loads
For a single bearing only:

Radial load kN

Axial load kN

For a shaft and bearings:

Select one of the coordinates system below the loads on the shaft.

○ Cartesian coordinates ○ Polar coordinates

F
F y F z r
F
x, y, z z
Drive side r, Ѳ, z
Ѳ
Drive side F
F Ѳ
y x
z Non-drive side
R z Non-drive side
2
Ѳ
1
x
Gravity in X-direction Gravity in direction of q = 0°

Loads Position External loads
X/r Y/θ Z Fx/Fr Fx/Fr Fx/Fr
mm mm/° mm kN kN kN
1
2
* Supply information for additional loads in a separate document.

☐ Peak load kN
☐ Alternating load kN
☐ Moment load kN

If load and/or speed change over time, provide details of the load/speed cycle.

Speed
