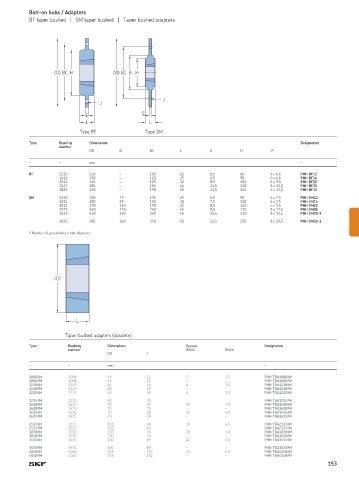

Bolt-on hubs / Adapters
BF taper bushed | SM taper bushed | Taper bushed adapters

OD BC H OD BC B H

J J
J J
E
E
L L
Type BF Type SM

Type Bushing Dimensions Designation
number
OD B BC L E H J 1)

– – mm –

BF 1210 120 – 100 25 6,5 80 6 x 6,6 PHH BF12
1610 130 – 110 25 6,5 90 6 x 6,6 PHH BF16
2012 145 – 125 32 8,5 100 6 x 9,0 PHH BF20
2517 185 – 155 44 11,5 130 6 x 11,0 PHH BF25
3020 220 – 190 50 11,5 165 6 x 13,0 PHH BF30

SM 1210 180 75 135 25 6,5 90 6 x 7,5 PHH SM12
1615 200 85 150 38 7,5 110 6 x 7,5 PHH SM16
2012 270 110 190 32 8,5 140 6 x 9,5 PHH SM20
2517 340 125 240 45 9,5 170 8 x 11,5 PHH SM25
3020 430 160 300 51 13,5 220 8 x 13,5 PHH SM30-1

3020 485 160 340 51 13,5 250 8 x 13,5 PHH SM30-2

1) Number of screw holes x hole diameter.

OD

L

Taper bushed adapters (obsolete)

Type Bushing Dimensions Keyway Designation
number Width Depth
OD L

– – mm –

1008KM 1008 45 22 5 2,5 PHH TBA1008KM
1008PM 1008 45 22 – – PHH TBA1008PM
1210KM 1210 60 25 6 3,0 PHH TBA1210KM
1210PM 1210 60 25 – – PHH TBA1210PM
1215KM 1215 60 38 6 3,0 PHH TBA1215KM

1215PM 1215 60 38 – – PHH TBA1215PM
1610KM 1610 70 25 10 4,0 PHH TBA1610KM
1610PM 1610 70 25 – – PHH TBA1610PM
1615KM 1615 70 38 10 4,0 PHH TBA1615KM
1615PM 1615 70 38 – – PHH TBA1615PM

2517KM 2517 105 45 16 4,0 PHH TBA2517KM
2517PM 2517 105 45 – – PHH TBA2517PM
3030KM 3030 130 76 20 5,0 PHH TBA3030KM
3030PM 3030 130 76 – – PHH TBA3030PM
3535KM 3535 160 89 22 5,0 PHH TBA3535KM

3535PM 3535 160 89 – – PHH TBA3535PM
4040KM 4040 185 102 24 5,0 PHH TBA4040KM
4040PM 4040 185 102 – – PHH TBA4040PM
153
