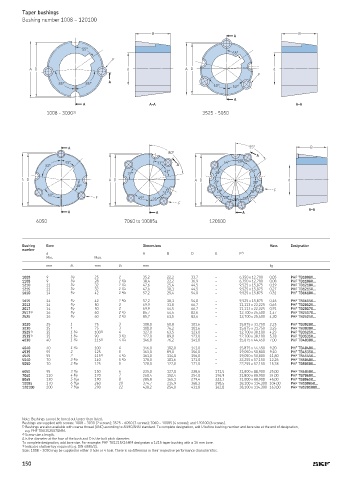

Taper bushings
Bushing number 1008 – 120100

B A B
55°
55°
F
A D d A D d
F
A
85° 85°
60° 52°
A
A A–A A–A
1008 - 3030 3) 3525 - 5050

A 55° B
80°
A
45° 33° 54° 28°
82° A
43° 54°
37° 28°
A D A D A D d
28° 28°
38°
28° 28° F
31°
60°
F 45° 35° 28° 28° 28°
F
A–A
A A A
6050 7060 to 10085a 120100

Bushing Bore Dimensions Mass Designation
number
d A B D E F 2)
Min. Max.

– mm in. mm in. mm kg –

1008 9 3 /8 25 1 35,2 22,2 33,7 – 6,350 x 12,700 0,05 PHF TB1008X...
1108 9 3 /8 28 1 1 /8 38,4 22,2 36,9 – 6,350 x 12,700 0,08 PHF TB1108X...
1210 11 1 /2 32 1 1 /4 47,6 25,4 44,5 – 9,525 x 15,875 0,19 PHF TB1210X...
1215 11 1 /2 32 1 1 /4 47,6 38,1 44,5 – 9,525 x 15,875 0,27 PHF TB1215X...
1610 14 1 /2 42 1 5 /8 57,2 25,4 54,0 – 9,525 x 15,875 0,31 PHF TB1610X...

1615 14 1 /2 42 1 5 /8 57,2 38,1 54,0 – 9,525 x 15,875 0,46 PHF TB1615X...
2012 14 1 /2 50 2 69,9 31,8 66,7 – 11,113 x 22,225 0,65 PHF TB2012X...
2017 14 1 /2 50 2 69,9 44,5 66,7 – 11,113 x 22,225 0,91 PHF TB2017X...
2517 1) 16 1 /2 60 2 1 /2 85,7 44,5 82,6 – 12,700 x 25,400 1,47 PHF TB2517X...
2525 16 1 /2 60 2 1 /2 85,7 63,5 82,6 – 12,700 x 25,400 4,30 PHF TB2525X...

3020 25 1 75 3 108,0 50,8 101,6 – 15,875 x 31,750 2,25 PHF TB3020X...
3030 35 1 75 3 108,0 76,2 101,6 – 15,875 x 31,750 3,25 PHF TB3030X...
3525 1) 35 1 1 /4 100 3) 4 127,0 63,5 123,0 – 12,700 x 38,100 4,23 PHF TB3525X...
3535 1) 35 1 1 /4 90 3 1 /2 127,0 89,0 123,0 – 12,700 x 38,100 5,78 PHF TB3535X...
4030 40 1 3 /4 115 3) 4 1 /4 146,0 76,2 141,0 – 15,875 x 44,450 7,00 PHF TB4030X...

4040 40 1 3 /4 100 4 146,0 102,0 141,0 – 15,875 x 44,450 9,20 PHF TB4040X...
4535 55 2 125 5 161,0 89,0 156,0 – 19,050 x 50,800 9,10 PHF TB4535X...
4545 55 2 115 3) 4 1 /2 161,0 114,0 156,0 – 19,050 x 50,800 11,80 PHF TB4545X...
5040 70 2 5 /8 140 5 1 /2 178,0 101,6 171,0 – 22,255 x 57,150 12,26 PHF TB5040X...
5050 70 2 5 /8 125 5 178,0 127,0 171,0 – 22,255 x 57,150 15,18 PHF TB5050X...

6050 95 3 7 /8 150 6 235,0 127,0 228,6 171,5 31,800 x 88,900 25,00 PHF TB6050X...
7060 110 4 5 /8 170 7 260,4 152,4 254,0 196,9 31,800 x 88,900 34,00 PHF TB7060X...
8065 130 5 1 /16 190 8 285,8 165,1 279,4 222,3 31,800 x 88,900 45,00 PHF TB8065X...
10085 170 6 9 /16 260 10 374,7 215,9 368,3 298,5 38,100 x 114,300 104,00 PHF TB10085X...
120100 200 7 9 /16 290 12 438,2 254,0 431,8 362,0 38,100 x 114,300 163,00 PHF TB120100X...

Note: Bushings cannot be bored out larger than listed.
Bushings are supplied with screws: 1008 - 3030 (2 screws); 3525 - 6050 (3 screws); 7060 - 10085 (4 screws); and 120100 (6 screws).
1) Bushings are also available with coarse thread (UNC) according to ASME/ANSI standard. To complete designation, add U before bushing number and bore size at the end of designation,
e.g. PHF TBU3525X70MM.
2) Screw size x length.
A is the diameter at the face of the bush and D is the bolt pitch diameter.
To complete designation, add bore size. For example: PHF TB1215X16MM designates a 1215 taper bushing with a 16 mm bore.
3) Indicates shallow key required (e.g. DIN 6885/3).
Sizes 1008 - 3030 may be supplied in either 3 hole or 4 hole. There is no difference in their respective performance characteristics.
