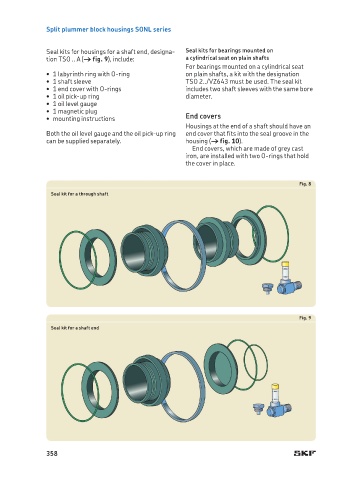

Split plummer block housings SONL series

Seal kits for housings for a shaft end, designa- Seal kits for bearings mounted on
tion TSO .. A († fig. 9), include: a cylindrical seat on plain shafts
For bearings mounted on a cylindrical seat
• 1 labyrinth ring with O-ring on plain shafts, a kit with the designation
• 1 shaft sleeve TSO 2../VZ643 must be used. The seal kit
• 1 end cover with O-rings includes two shaft sleeves with the same bore
• 1 oil pick-up ring diameter.
• 1 oil level gauge
• 1 magnetic plug
• mounting instructions End covers
Housings at the end of a shaft should have an
Both the oil level gauge and the oil pick-up ring end cover that fits into the seal groove in the
can be supplied separately. housing († fig. 10).
End covers, which are made of grey cast
iron, are installed with two O-rings that hold
the cover in place.

Fig. 8
Seal kit for a through shaft

Fig. 9
Seal kit for a shaft end
