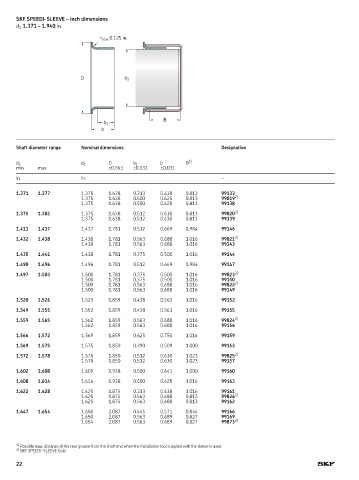

SKF SPEEDI-SLEEVE – inch dimensions
d 1 1.371 – 1.940 in.
r max 0.125 in.

D d 1

B
b 1
b

Shaft diameter range Nominal dimensions Designation

1)
d 1 d 1 D b 1 b B
min max ±0.063 ±0.031 ±0.031
in. in. –

1.371 1.377 1.375 1.638 0.313 0.438 0.813 99133
1.375 1.638 0.500 0.625 0.813 99819 2)
1.375 1.638 0.500 0.625 0.813 99138

1.375 1.381 1.375 1.638 0.512 0.630 0.813 99820 2)
1.375 1.638 0.512 0.630 0.813 99139

1.411 1.417 1.417 1.781 0.512 0.669 0.984 99146

1.432 1.438 1.438 1.781 0.563 0.688 1.016 99821 2)
1.438 1.781 0.563 0.688 1.016 99143

1.435 1.441 1.438 1.781 0.375 0.500 1.016 99144

1.490 1.496 1.496 1.781 0.512 0.669 0.984 99147

1.497 1.503 1.500 1.781 0.375 0.500 1.016 99823 2)
1.500 1.781 0.375 0.500 1.016 99150
1.500 1.781 0.563 0.688 1.016 99822 2)
1.500 1.781 0.563 0.688 1.016 99149

1.520 1.526 1.523 1.859 0.438 0.563 1.016 99152

1.549 1.555 1.552 1.859 0.438 0.563 1.016 99155

1.559 1.565 1.562 1.859 0.563 0.688 1.016 99824 2)
1.562 1.859 0.563 0.688 1.016 99156

1.566 1.572 1.569 1.859 0.625 0.750 1.016 99159

1.569 1.575 1.575 1.850 0.390 0.509 1.000 99153

1.572 1.578 1.578 1.850 0.512 0.630 1.023 99825 2)
1.578 1.850 0.512 0.630 1.023 99157

1.602 1.608 1.605 1.938 0.500 0.641 1.000 99160

1.608 1.614 1.614 1.938 0.500 0.625 1.016 99163

1.622 1.628 1.625 1.875 0.313 0.438 1.016 99161
1.625 1.875 0.563 0.688 0.813 99826 2)
1.625 1.875 0.563 0.688 0.813 99162

1.647 1.654 1.650 2.087 0.445 0.571 0.846 99166
1.650 2.087 0.563 0.689 0.827 99169
1.654 2.087 0.563 0.689 0.827 99873 2)

1) Possible max. distance of the rear groove from the shaft end when the installation tool supplied with the sleeve is used
2) SKF SPEEDI-SLEEVE Gold
