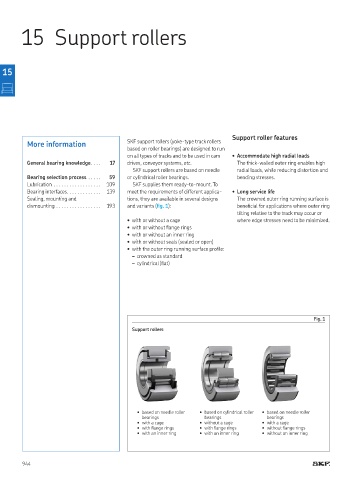

15 Support rollers

15

Support roller features
More informatione information
Mor SKF support rollers (yoke-type track rollers
based on roller bearings) are designed to run
on all types of tracks and to be used in cam • Accommodate high radial loads
17
Bearing life and load ratings al bearing knowledge
Gener 63 drives, conveyor systems, etc The thick-walled outer ring enables high
SKF support rollers are based on needle radial loads, while reducing distortion and
59
B 59 or cylindrical roller bearings bending stresses.
Design considerations earing selection process
109
Bearing systems ubrication
L 160 SKF supplies them ready-to-mount To
Recommended its earing interfaces 1699 meet the requirements of different applica- • Long service life
13
B
Abutment and illet dimensions aling, mounting and
Se 208 tions, they are available in several designs The crowned outer ring running surface is
dismounting 193 and variants (ig. 1): beneicial for applications where outer ring
Lubrication 239 tilting relative to the track may occur or
• with or without a cage where edge stresses need to be minimized
Mounting, dismounting and • with or without lange rings
bearing care 271 • with or without an inner ring
Mounting instructions for • with or without seals (sealed or open)
individual bearings † skf com/mount • with the outer ring running surface proile:
SKF bearing maintenance – crowned as standard
handbook (ISBN 978-91-978966-4-1) – cylindrical (lat)

Fig. 1
Support rollers

• based on needle roller • based on cylindrical roller • based on needle roller
bearings bearings bearings
• with a cage • without a cage • with a cage
• with lange rings • with lange rings • without lange rings
• with an inner ring • with an inner ring • without an inner ring

944
