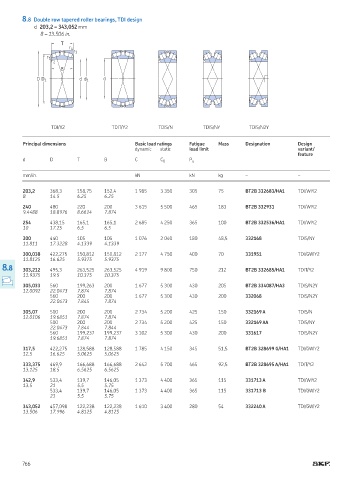

8.8 Double row tapered roller bearings, TDI design
d 203,2 – 343,052 mm
8 – 13.506 in.
T
r 4
r 3
r 1
r 2
B
D D 1 d d 1 d

TDI/Y2 TDIT/Y2 TDIS/N TDIS/NY TDIS/N2Y

Principal dimensions Basic load ratings Fatigue Mass Designation Design
dynamic static load limit variant/
feature
d D T B C C 0 P u

mm/in. kN kN kg – –

203,2 368,3 158,75 152,4 1 985 3 350 305 75 BT2B 332683/HA1 TDI/WIY2
8 14.5 6.25 6.25

240 480 220 200 3 615 5 500 465 183 BT2B 332931 TDI/WIY2
9.4488 18.8976 8.6614 7.874

254 438,15 165,1 165,1 2 685 4 250 365 100 BT2B 332536/HA1 TDI/WIY2
10 17.25 6.5 6.5

300 440 105 105 1 076 2 040 180 48,5 332168 TDIS/NY
11.811 17.3228 4.1339 4.1339

300,038 422,275 150,812 150,812 2 177 4 750 400 70 331951 TDI/GWIY2
11.8125 16.625 5.9375 5.9375

8.8 303,212 495,3 263,525 263,525 4 919 9 800 750 212 BT2B 332685/HA1 TDIT/Y2
11.9375 19.5 10.375 10.375

305,033 560 199,263 200 1 677 5 300 430 205 BT2B 334087/HA3 TDIS/N2Y
12.0092 22.0473 7.874 7.874
560 200 200 1 677 5 300 430 200 332068 TDIS/N2Y
22.0473 7.845 7.874

305,07 500 200 200 2 734 5 200 425 150 332169 A TDIS/N
12.0106 19.6851 7.874 7.874
500 200 200 2 734 5 200 425 150 332169 AA TDIS/NY
22.0473 7.844 7.844
560 199,237 199,237 3 102 5 300 430 200 331617 TDIS/N2Y
19.6851 7.874 7.874

317,5 422,275 128,588 128,588 1 785 4 150 345 51,5 BT2B 328699 G/HA1 TDI/GWIY2
12.5 16.625 5.0625 5.0625

333,375 469,9 166,688 166,688 2 642 5 700 465 92,5 BT2B 328695 A/HA1 TDIT/Y2
13.125 18.5 6.5625 6.5625

342,9 533,4 139,7 146,05 1 373 4 400 365 115 331713 A TDI/WIY2
13.5 21 5.5 5.75
533,4 139,7 146,05 1 373 4 400 365 115 331713 B TDI/GWIY2
21 5.5 5.75

343,052 457,098 122,238 122,238 1 610 3 400 280 54 332240 A TDI/GWIY2
13.506 17.996 4.8125 4.8125
