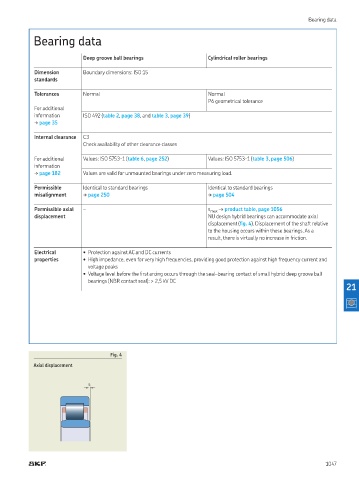

Bearing data

Bearing data

Deep groove ball bearings Cylindrical roller bearings

Dimension Boundary dimensions: ISO 15
standards

Tolerances Normal Normal
P6 geometrical tolerance
For additional
information ISO 492 (table 2, page 38, and table 3, page 39)
† page 35

Internal clearance C3
Check availability of other clearance classes

For additional Values: ISO 5753-1 (table 6, page 252) Values: ISO 5753-1 (table 3, page 506)
information
† page 182 Values are valid for unmounted bearings under zero measuring load.

Permissible Identical to standard bearings Identical to standard bearings
misalignment † page 250 † page 504

Permissible axial – s max → product table, page 1056
displacement NU design hybrid bearings can accommodate axial
displacement (ig. 4). Displacement of the shaft relative
to the housing occurs within these bearings. As a
result, there is virtually no increase in friction.

Electrical • Protection against AC and DC currents
properties • High impedance, even for very high frequencies, providing good protection against high frequency current and
voltage peaks
• Voltage level before the irst arcing occurs through the seal–bearing contact of small hybrid deep groove ball
bearings (NBR contact seal): > 2,5 kV DC
21

Fig. 4
Axial displacement

s

1047
