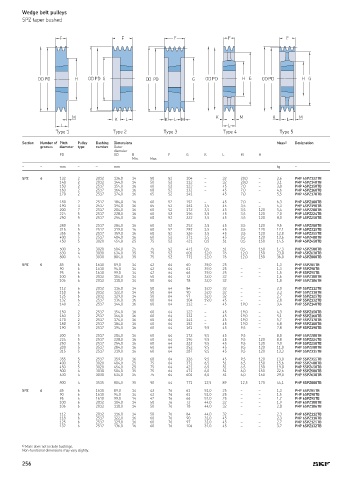

Wedge belt pulleys
SPZ taper bushed

F F F F F

OD PD H OD PD G OD PD G OD PD H G OD PD H G

M K M K M
K L K L M L
L L
Type 1 Type 2 Type 3 Type 4 Type 5

Section Number of Pitch Pulley Bushing Dimensions Mass 1) Designation
grooves diameter type number Outer
diameter
PD OD B F G K L M H
Min. Max.

– – mm – – mm kg –

SPZ 4 132 2 2012 136,0 14 50 52 104 – 32 20,0 – 2,6 PHP 4SPZ132TB
140 2 2012 144,0 14 50 52 112 – 32 20,0 – 3,1 PHP 4SPZ140TB
150 2 2517 154,0 16 60 52 122 – 45 7,0 – 3,8 PHP 4SPZ150TB
160 2 2517 164,0 16 60 52 132 – 45 7,0 – 4,6 PHP 4SPZ160TB
170 2 2517 174,0 16 65 52 141 – 45 7,0 – 5,5 PHP 4SPZ170TB

180 2 2517 184,0 16 60 52 152 – 45 7,0 – 6,3 PHP 4SPZ180TB
190 3 2517 194,0 16 65 52 161 3,5 45 3,5 – 5,3 PHP 4SPZ190TB
200 7 2517 204,0 16 60 52 172 3,5 45 3,5 120 5,4 PHP 4SPZ200TB
224 5 2517 228,0 16 60 52 196 3,5 45 3,5 120 7,0 PHP 4SPZ224TB
250 5 2517 254,0 16 60 52 222 3,5 45 3,5 120 8,0 PHP 4SPZ250TB

280 5 2517 284,0 16 60 52 252 3,5 45 3,5 120 9,5 PHP 4SPZ280TB
315 5 2517 319,0 16 60 52 287 3,5 45 3,5 120 12,1 PHP 4SPZ315TB
355 5 2517 359,0 16 60 52 326 3,5 45 3,5 120 12,8 PHP 4SPZ355TB
400 5 2517 404,0 16 60 52 371 3,5 45 3,5 120 13,6 PHP 4SPZ400TB
450 5 3020 454,0 25 75 52 421 0,5 51 0,5 150 14,5 PHP 4SPZ450TB

500 5 3020 504,0 25 75 52 471 0,5 51 0,5 150 17,3 PHP 4SPZ500TB
630 4 3030 634,0 35 75 52 601 12,0 76 12,0 150 23,0 PHP 4SPZ630TB
800 4 3030 804,0 35 75 52 771 12,0 76 12,0 150 36,0 PHP 4SPZ800TB

SPZ 5 85 6 1610 89,0 14 42 64 60 39,0 25 – – 1,3 PHP 5SPZ85TB
90 6 1610 94,0 14 42 64 61 39,0 25 – – 1,3 PHP 5SPZ90TB
95 6 1610 99,0 14 42 64 66 39,0 25 – – 1,5 PHP 5SPZ95TB
100 6 2012 104,0 14 50 64 72 32,0 32 – – 1,6 PHP 5SPZ100TB
106 6 2012 110,0 14 50 64 78 32,0 32 – – 1,8 PHP 5SPZ106TB

112 6 2012 116,0 14 50 64 84 32,0 32 – – 2,0 PHP 5SPZ112TB
118 6 2012 122,0 14 50 64 90 32,0 32 – – 2,3 PHP 5SPZ118TB
125 6 2012 129,0 14 50 64 97 32,0 32 – – 2,7 PHP 5SPZ125TB
132 6 2517 136,0 16 60 64 104 19,0 45 – – 2,8 PHP 5SPZ132TB
140 2 2517 144,0 16 60 64 112 – 45 19,0 – 3,4 PHP 5SPZ140TB

150 2 2517 154,0 16 60 64 122 – 45 19,0 – 4,3 PHP 5SPZ150TB
160 2 2517 164,0 16 60 64 132 – 45 19,0 – 5,1 PHP 5SPZ160TB
170 2 2517 174,0 16 60 64 141 – 45 19,0 – 5,7 PHP 5SPZ170TB
180 2 2517 184,0 16 60 64 152 – 45 19,0 – 6,8 PHP 5SPZ180TB
190 3 2517 194,0 16 60 64 161 9,5 45 9,5 – 7,8 PHP 5SPZ190TB

200 5 2517 204,0 16 60 64 172 9,5 45 9,5 – 8,8 PHP 5SPZ200TB
224 5 2517 228,0 16 60 64 196 9,5 45 9,5 120 8,8 PHP 5SPZ224TB
250 5 2517 254,0 16 60 64 222 9,5 45 9,5 120 9,0 PHP 5SPZ250TB
280 5 2517 284,0 16 60 64 252 9,5 45 9,5 120 11,0 PHP 5SPZ280TB
315 5 2517 319,0 16 60 64 287 9,5 45 9,5 120 13,3 PHP 5SPZ315TB

355 5 2517 359,0 16 60 64 326 9,5 45 9,5 120 13,0 PHP 5SPZ355TB
400 5 3020 404,0 25 75 64 371 6,5 51 6,5 150 15,6 PHP 5SPZ400TB
450 5 3020 454,0 25 75 64 421 6,5 51 6,5 150 19,0 PHP 5SPZ450TB
500 4 3030 504,0 35 75 64 471 6,0 51 6,0 150 22,6 PHP 5SPZ500TB
630 4 3030 634,0 35 75 64 601 6,0 51 6,0 150 29,0 PHP 5SPZ630TB

800 4 3535 804,0 35 90 64 771 12,5 89 12,5 170 44,1 PHP 5SPZ800TB

SPZ 6 85 6 1610 89,0 14 42 76 61 51,0 25 – – 1,3 PHP 6SPZ85TB
90 6 1610 94,0 14 42 76 61 51,0 25 – – 1,5 PHP 6SPZ90TB
95 6 1610 99,0 14 42 76 66 51,0 25 – – 1,7 PHP 6SPZ95TB
100 6 2012 104,0 14 50 76 72 44,0 32 – – 1,9 PHP 6SPZ100TB
106 6 2012 110,0 14 50 76 78 44,0 32 – – 2,0 PHP 6SPZ106TB

112 6 2012 116,0 14 50 76 84 44,0 32 – – 2,3 PHP 6SPZ112TB
118 6 2517 122,0 16 60 76 90 31,0 45 – – 2,3 PHP 6SPZ118TB
125 6 2517 129,0 16 60 76 97 31,0 45 – – 2,7 PHP 6SPZ125TB
132 6 2517 136,0 16 60 76 104 31,0 45 – – 3,2 PHP 6SPZ132TB

1) Mass does not include bushings.
Non-functional dimensions may vary slightly.
