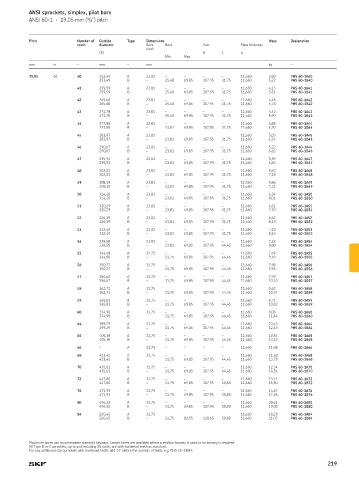

ANSI sprockets, simplex, pilot bore
ANSI 60-1 · 19,05 mm ( /4") pitch
3

Pitch Number of Outside Type Dimensions Mass Designation
teeth diameter Bore Bore Hub Plate thickness
stock
OD H L t 1
Min. Max.

mm in. – mm – mm kg –

19,05 3 /4 40 253,49 A 23,81 – – – – 11,660 3,88 PHS 60-1A40
253,49 B – 25,40 69,85 107,95 31,75 11,660 5,22 PHS 60-1B40

41 259,59 A 23,81 – – – – 11,660 4,13 PHS 60-1A41
259,59 B – 25,40 69,85 107,95 31,75 11,660 5,51 PHS 60-1B41

42 265,68 A 23,81 – – – – 11,660 4,46 PHS 60-1A42
265,68 B – 25,40 69,85 107,95 31,75 11,660 5,78 PHS 60-1B42

43 271,78 A 23,81 – – – – 11,660 4,42 PHS 60-1A43
271,78 B – 25,40 69,85 107,95 31,75 11,660 5,90 PHS 60-1B43

44 277,88 A 23,81 – – – – 11,660 4,88 PHS 60-1A44
277,88 B – 23,81 69,85 107,95 31,75 11,660 6,30 PHS 60-1B44

45 283,97 A 23,81 – – – – 11,660 5,03 PHS 60-1A45
283,97 B – 23,81 69,85 107,95 31,75 11,660 6,34 PHS 60-1B45

46 290,07 A 23,81 – – – – 11,660 5,22 PHS 60-1A46
290,07 B – 23,81 69,85 107,95 31,75 11,660 6,62 PHS 60-1B46

47 295,91 A 23,81 – – – – 11,660 5,59 PHS 60-1A47
295,91 B – 23,81 69,85 107,95 31,75 11,660 6,80 PHS 60-1B47

48 302,01 A 23,81 – – – – 11,660 5,63 PHS 60-1A48
302,01 B – 23,81 69,85 107,95 31,75 11,660 7,18 PHS 60-1B48

49 308,10 A 23,81 – – – – 11,660 5,86 PHS 60-1A49
308,10 B – 23,81 69,85 107,95 31,75 11,660 7,21 PHS 60-1B49

50 314,20 A 23,81 – – – – 11,660 6,34 PHS 60-1A50
314,20 B – 23,81 69,85 107,95 31,75 11,660 8,01 PHS 60-1B50

51 320,29 A 23,81 – – – – 11,660 6,61 PHS 60-1A51
320,29 B – 23,81 69,85 107,95 31,75 11,660 7,70 PHS 60-1B51

52 326,39 A 23,81 – – – – 11,660 6,62 PHS 60-1A52
326,39 B – 23,81 69,85 107,95 31,75 11,660 8,13 PHS 60-1B52

53 332,49 A 23,81 – – – – 11,660 7,18 PHS 60-1A53
332,49 B – 23,81 69,85 107,95 31,75 11,660 8,16 PHS 60-1B53

54 338,58 A 23,81 – – – – 11,660 7,22 PHS 60-1A54
338,58 B – 23,81 69,85 107,95 44,45 11,660 9,80 PHS 60-1B54

55 344,68 A 31,75 – – – – 11,660 7,69 PHS 60-1A55
344,68 B – 31,75 69,85 107,95 44,45 11,660 9,59 PHS 60-1B55

56 350,77 A 31,75 – – – – 11,660 7,98 PHS 60-1A56
350,77 B – 31,75 69,85 107,95 44,45 11,660 9,92 PHS 60-1B56

57 356,62 A 31,75 – – – – 11,660 7,99 PHS 60-1A57
356,62 B – 31,75 69,85 107,95 44,45 11,660 10,10 PHS 60-1B57

58 362,71 A 31,75 – – – – 11,660 8,62 PHS 60-1A58
362,71 B – 31,75 69,85 107,95 44,45 11,660 10,34 PHS 60-1B58

59 368,81 A 31,75 – – – – 11,660 8,71 PHS 60-1A59
368,81 B – 31,75 69,85 107,95 44,45 11,660 10,82 PHS 60-1B59

60 374,90 A 31,75 – – – – 11,660 9,08 PHS 60-1A60
374,90 B – 31,75 69,85 107,95 44,45 11,660 11,44 PHS 60-1B60

64 399,29 A 31,75 – – – – 11,660 10,43 PHS 60-1A64
399,29 B – 31,75 69,85 107,95 44,45 11,660 12,43 PHS 60-1B64

65 405,38 A 31,75 – – – – 11,660 10,54 PHS 60-1A65
405,38 B – 31,75 69,85 107,95 44,45 11,660 13,12 PHS 60-1B65

66 – A 31,75 – – – – 11,660 11,08 PHS 60-1A66

68 423,42 A 31,75 – – – – 11,660 11,58 PHS 60-1A68
423,42 B – 31,75 69,85 107,95 44,45 11,660 13,78 PHS 60-1B68

70 435,61 A 31,75 – – – – 11,660 12,34 PHS 60-1A70
435,61 B – 31,75 69,85 107,95 44,45 11,660 14,51 PHS 60-1B70

72 447,80 A 31,75 – – – – 11,660 13,11 PHS 60-1A72
447,80 B – 31,75 69,85 107,95 50,80 11,660 15,50 PHS 60-1B72

76 471,93 A 31,75 – – – – 11,660 14,67 PHS 60-1A76
471,93 B – 31,75 69,85 107,95 50,80 11,660 17,26 PHS 60-1B76

80 496,32 A 31,75 – – – – 11,660 20,64 PHS 60-1A80
496,32 B – 31,75 69,85 107,95 50,80 11,660 19,00 PHS 60-1B80

84 520,45 A 31,75 – – – – 11,660 18,23 PHS 60-1A84
520,45 B – 31,75 82,55 120,65 50,80 11,660 21,07 PHS 60-1B84

Maximum bores can accommodate standard keyways. Larger bores are available where a shallow keyway is used or no keyway is required.
All Type B or C sprockets, up to and including 25 tooth, are with hardened teeth as standard.
For any additional size sprockets with hardened teeth, add “H” before the number of teeth, e.g. PHS 25-1BH9.
