ชื่อรุ่น :

PHP 66 - AT10 - XXRSB

แบรนด์

SKF

รายละเอียด :

  • ระยะห่างระหว่างฟัน ( Pitch ) = 10 mm
  • สายพานหน้ากว้าง 50 mm
ติดต่อเราได้ที่ :

Model

Model description

Price

Model
PHP 66 - AT10 - 18RSB
Model description

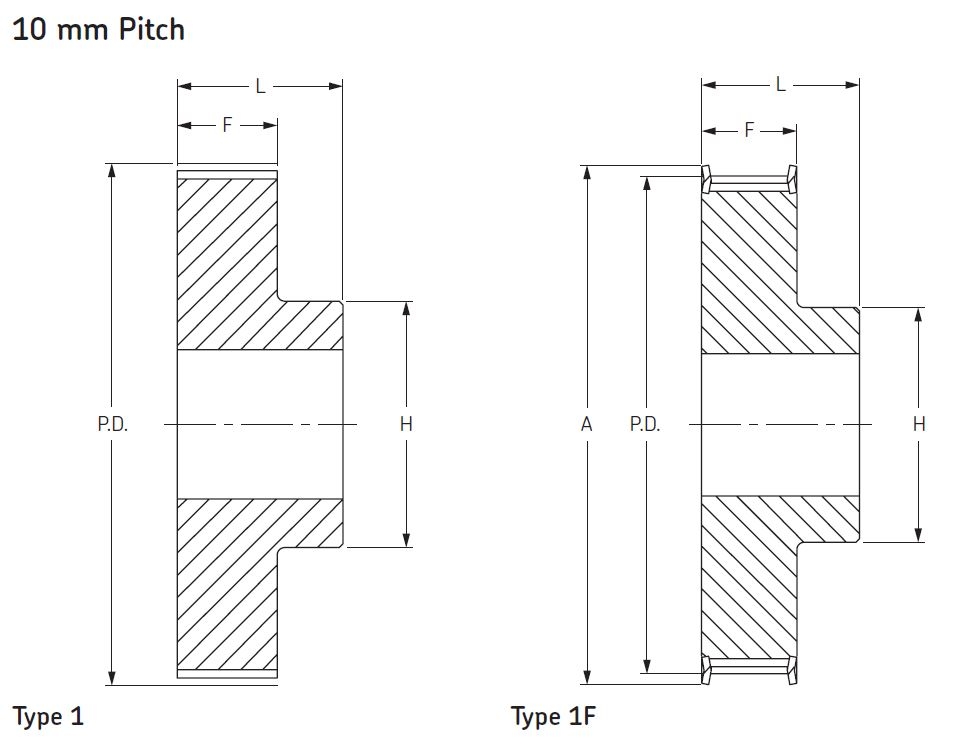

No. Teeth = 18 DIMENSIONS : Diameter (P.D.) = 57.29 mm , Pulley Type = 1F , Bore min = 10 mm , Bore max = 26 mm ,F = 56 mm , H = 40 mm , L = 66 mm
Price
Model
PHP 66 - AT10 - 19RSB
Model description
No. Teeth = 19 DIMENSIONS : Diameter (P.D.) = 60.48 mm , Pulley Type = 1F , Bore min = 10 mm , Bore max = 28 mm ,F = 56 mm , H = 44 mm , L = 66 mm
Price
Model
PHP 66 - AT10 - 20RSB
Model description
No. Teeth = 20 DIMENSIONS : Diameter (P.D.) = 63.66 mm , Pulley Type = 1F , Bore min = 12 mm , Bore max = 30 mm ,F = 56 mm , H = 46 mm , L = 66 mm
Price
Model
PHP 66 - AT10 - 21RSB
Model description
No. Teeth = 21 DIMENSIONS : Diameter (P.D.) = 66.85 mm , Pulley Type = 1F , Bore min = 12 mm , Bore max = 32 mm ,F = 56 mm , H = 49 mm , L = 66 mm
Price
Model
PHP 66 - AT10 - 22RSB
Model description
No. Teeth = 22 DIMENSIONS : Diameter (P.D.) = 70.20 mm , Pulley Type = 1F , Bore min = 12 mm , Bore max = 34 mm ,F = 56 mm , H = 52 mm , L = 66 mm
Price
Model
PHP 66 - AT10 - 23RSB
Model description
No. Teeth = 23 DIMENSIONS : Diameter (P.D.) = 73.21 mm , Pulley Type = 1F , Bore min = 12 mm , Bore max = 36 mm ,F = 56 mm , H = 55 mm , L = 66 mm
Price
Model
PHP 66 - AT10 - 24RSB
Model description
No. Teeth = 24 DIMENSIONS : Diameter (P.D.) = 76.39 mm , Pulley Type = 1F , Bore min = 12 mm , Bore max = 38 mm ,F = 56 mm , H = 58 mm , L = 66 mm
Price
Model
PHP 66 - AT10 - 25RSB
Model description
No. Teeth = 25 DIMENSIONS : Diameter (P.D.) = 79.58 mm , Pulley Type = 1F , Bore min = 12 mm , Bore max = 39 mm ,F = 56 mm , H = 60 mm , L = 66 mm
Price
Model
PHP 66 - AT10 - 26RSB
Model description
No. Teeth = 26 DIMENSIONS : Diameter (P.D.) = 82.76 mm , Pulley Type = 1F , Bore min = 12 mm , Bore max = 39 mm ,F = 56 mm , H = 60 mm , L = 66 mm
Price
Model
PHP 66 - AT10 - 27RSB
Model description
No. Teeth = 27 DIMENSIONS : Diameter (P.D.) = 85.95 mm , Pulley Type = 1F , Bore min = 12 mm , Bore max = 39 mm ,F = 56 mm , H = 60 mm , L = 66 mm
Price
Model
PHP 66 - AT10 - 28RSB
Model description
No. Teeth = 28 DIMENSIONS : Diameter (P.D.) = 89.25 mm , Pulley Type = 1F , Bore min = 12 mm , Bore max = 39 mm ,F = 56 mm , H = 60 mm , L = 66 mm
Price
Model
PHP 66 - AT10 - 30RSB
Model description
No. Teeth = 30 DIMENSIONS : Diameter (P.D.) = 95.49 mm , Pulley Type = 1F , Bore min = 12 mm , Bore max = 39 mm ,F = 56 mm , H = 60 mm , L = 66 mm
Price
Model
PHP 66 - AT10 - 32RSB
Model description
No. Teeth = 32 DIMENSIONS : Diameter (P.D.) = 101.86 mm , Pulley Type = 1F , Bore min = 12 mm , Bore max = 42 mm ,F = 56 mm , H = 65 mm , L = 66 mm
Price
Model
PHP 66 - AT10 - 35RSB
Model description
No. Teeth = 35 DIMENSIONS : Diameter (P.D.) = 111.41 mm , Pulley Type = 1F , Bore min = 16 mm , Bore max = 45 mm ,F = 56 mm , H = 70 mm , L = 66 mm
Price
Model
PHP 66 - AT10 - 36RSB
Model description
No. Teeth = 36 DIMENSIONS : Diameter (P.D.) = 114.59 mm , Pulley Type = 1F , Bore min = 16 mm , Bore max = 45 mm ,F = 56 mm , H = 70 mm , L = 66 mm
Price
Model
PHP 66 - AT10 - 38RSB
Model description
No. Teeth = 38 DIMENSIONS : Diameter (P.D.) = 120.96 mm , Pulley Type = 1F , Bore min = 16 mm , Bore max = 48 mm ,F = 56 mm , H = 75 mm , L = 66 mm
Price
Model
PHP 66 - AT10 - 40RSB
Model description
No. Teeth = 40 DIMENSIONS : Diameter (P.D.) = 127.32 mm , Pulley Type = 1F , Bore min = 16 mm , Bore max = 52 mm ,F = 56 mm , H = 80 mm , L = 66 mm
Price
Model
PHP 66 - AT10 - 42RSB
Model description
No. Teeth = 42 DIMENSIONS : Diameter (P.D.) = 133.69 mm , Pulley Type = 1 , Bore min = 16 mm , Bore max = 57 mm ,F = 56 mm , H = 80 mm , L = 66 mm
Price
Model
PHP 66 - AT10 - 44RSB
Model description
No. Teeth = 44 DIMENSIONS : Diameter (P.D.) = 140.20 mm , Pulley Type = 1 , Bore min = 16 mm , Bore max = 57 mm ,F = 56 mm , H = 88 mm , L = 66 mm
Price
Model
PHP 66 - AT10 - 45RSB
Model description
No. Teeth = 45 DIMENSIONS : Diameter (P.D.) = 143.24 mm , Pulley Type = 1 , Bore min = 16 mm , Bore max = 59 mm ,F = 56 mm , H = 90 mm , L = 66 mm
Price
Model
PHP 66 - AT10 - 48RSB
Model description
No. Teeth = 48 DIMENSIONS : Diameter (P.D.) = 152.78 mm , Pulley Type = 1 , Bore min = 16 mm , Bore max = 62 mm ,F = 56 mm , H = 95 mm , L = 66 mm
Price
Model
PHP 66 - AT10 - 54RSB
Model description
No. Teeth = 54 DIMENSIONS : Diameter (P.D.) = 171.89 mm , Pulley Type = 1 , Bore min = 16 mm , Bore max = 66 mm ,F = 56 mm , H = 100 mm , L = 66 mm
Price
Model
PHP 66 - AT10 - 57RSB
Model description
No. Teeth = 57 DIMENSIONS : Diameter (P.D.) = 181.44 mm , Pulley Type = 1 , Bore min = 16 mm , Bore max = 72 mm ,F = 56 mm , H = 110 mm , L = 66 mm
Price
Model
PHP 66 - AT10 - 60RSB
Model description
No. Teeth = 60 DIMENSIONS : Diameter (P.D.) = 190.98 mm , Pulley Type = 1 , Bore min = 16 mm , Bore max = 72 mm ,F = 56 mm , H = 110 mm , L = 66 mm
Price
