PRODUCT
![]()
ชื่อรุ่น :
PHP 40 - AT10 - XXRSB
แบรนด์
SKF
รายละเอียด :
- ระยะห่างระหว่างฟัน ( Pitch ) = 10 mm
- สายพานหน้ากว้าง 25 mm
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHP 40 - AT10 - 12RSB
Model description
No. Teeth = 12

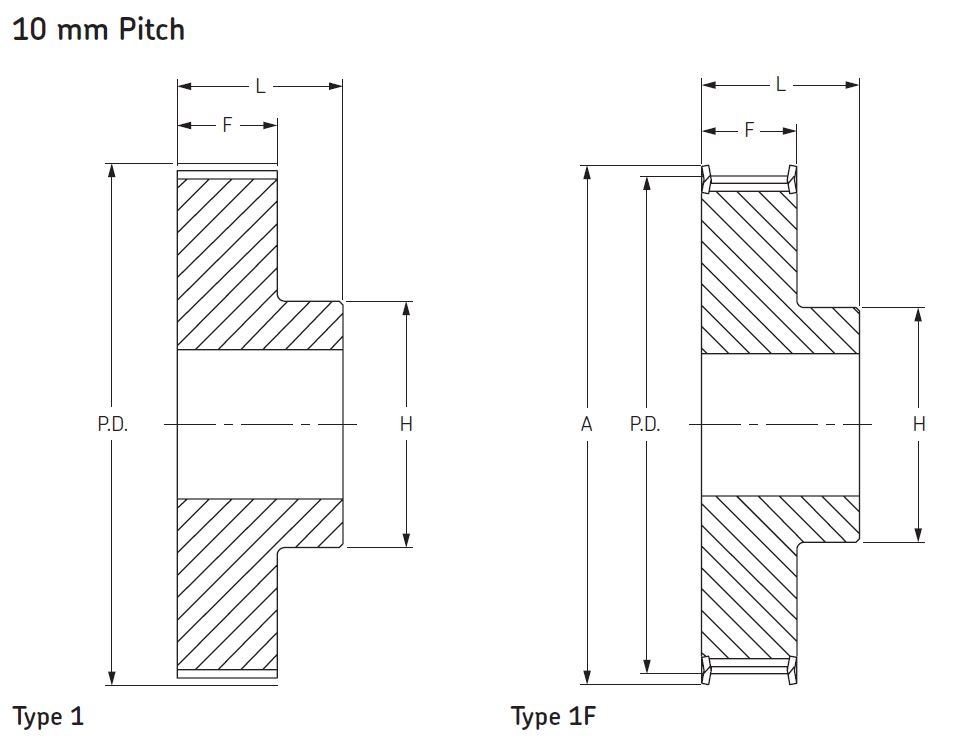

DIMENSIONS : Diameter (P.D.) = 38.2 mm , Pulley Type = 1F , Bore min = 6 mm , Bore max = 18 mm ,F = 30 mm , H = 28 mm , L = 40 mm
Price
Model
PHP 40 - AT10 - 14RSB
Model description
No. Teeth = 14
DIMENSIONS : Diameter (P.D.) = 44.6 mm , Pulley Type = 1F , Bore min = 8 mm , Bore max = 21 mm ,F = 30 mm , H = 32 mm , L = 40 mm
Price
Model
PHP 40 - AT10 - 15RSB
Model description
No. Teeth = 15
DIMENSIONS : Diameter (P.D.) = 47.8 mm , Pulley Type = 1F , Bore min = 8 mm , Bore max = 21 mm ,F = 30 mm , H = 32 mm , L = 40 mm
Price
Model
PHP 40 - AT10 - 16RSB
Model description
No. Teeth = 16
DIMENSIONS : Diameter (P.D.) = 50.9 mm , Pulley Type = 1F , Bore min = 8 mm , Bore max = 23 mm ,F = 30 mm , H = 35 mm , L = 40 mm
Price
Model
PHP 40 - AT10 - 17RSB
Model description
No. Teeth = 17
DIMENSIONS : Diameter (P.D.) = 54.1 mm , Pulley Type = 1F , Bore min = 8 mm , Bore max = 24 mm ,F = 30 mm , H = 37 mm , L = 40 mm
Price
Model
PHP 40 - AT10 - 18RSB
Model description
No. Teeth = 18
DIMENSIONS : Diameter (P.D.) = 57.3 mm , Pulley Type = 1F , Bore min = 8 mm , Bore max = 26 mm ,F = 30 mm , H = 40 mm , L = 40 mm
Price
Model
PHP 40 - AT10 - 19RSB
Model description
No. Teeth = 19
DIMENSIONS : Diameter (P.D.) = 60.5 mm , Pulley Type = 1F , Bore min = 8 mm , Bore max = 26 mm ,F = 30 mm , H = 40 mm , L = 40 mm
Price
Model
PHP 40 - AT10 - 20RSB
Model description
No. Teeth = 20
DIMENSIONS : Diameter (P.D.) = 63.7 mm , Pulley Type = 1F , Bore min = 8 mm , Bore max = 30 mm ,F = 30 mm , H = 46 mm , L = 40 mm
Price
Model
PHP 40 - AT10 - 21RSB
Model description
No. Teeth = 21
DIMENSIONS : Diameter (P.D.) = 66.8 mm , Pulley Type = 1F , Bore min = 8 mm , Bore max = 32 mm ,F = 30 mm , H = 49 mm , L = 40 mm
Price
Model
PHP 40 - AT10 - 22RSB
Model description
No. Teeth = 22
DIMENSIONS : Diameter (P.D.) = 70.0 mm , Pulley Type = 1F , Bore min = 8 mm , Bore max = 34 mm ,F = 30 mm , H = 52 mm , L = 40 mm
Price
Model
PHP 40 - AT10 - 23RSB
Model description
No. Teeth = 23
DIMENSIONS : Diameter (P.D.) = 73.2 mm , Pulley Type = 1F , Bore min = 8 mm , Bore max = 36 mm ,F = 30 mm , H = 55 mm , L = 40 mm
Price
Model
PHP 40 - AT10 - 24RSB
Model description
No. Teeth = 24
DIMENSIONS : Diameter (P.D.) = 76.4 mm , Pulley Type = 1F , Bore min = 8 mm , Bore max = 38 mm ,F = 30 mm , H = 58 mm , L = 40 mm
Price
Model
PHP 40 - AT10 - 25RSB
Model description
No. Teeth = 25
DIMENSIONS : Diameter (P.D.) = 79.6 mm , Pulley Type = 1F , Bore min = 8 mm , Bore max = 39 mm ,F = 30 mm , H = 60 mm , L = 40 mm
Price
Model
PHP 40 - AT10 - 26RSB
Model description
No. Teeth = 26
DIMENSIONS : Diameter (P.D.) = 82.8 mm , Pulley Type = 1F , Bore min = 8 mm , Bore max = 39 mm ,F = 30 mm , H = 60 mm , L = 40 mm
Price
Model
PHP 40 - AT10 - 27RSB
Model description
No. Teeth = 27
DIMENSIONS : Diameter (P.D.) = 86.0 mm , Pulley Type = 1F , Bore min = 8 mm , Bore max = 39 mm ,F = 30 mm , H = 60 mm , L = 40 mm
Price
Model
PHP 40 - AT10 - 28RSB
Model description
No. Teeth = 28
DIMENSIONS : Diameter (P.D.) = 89.2 mm , Pulley Type = 1F , Bore min = 8 mm , Bore max = 39 mm ,F = 30 mm , H = 60 mm , L = 40 mm
Price
Model
PHP 40 - AT10 - 30RSB
Model description
No. Teeth = 30
DIMENSIONS : Diameter (P.D.) = 95.5 mm , Pulley Type = 1F , Bore min = 8 mm , Bore max = 39 mm ,F = 30 mm , H = 60 mm , L = 40 mm
Price
Model
PHP 40 - AT10 - 32RSB
Model description
No. Teeth = 32
DIMENSIONS : Diameter (P.D.) = 101.9. mm , Pulley Type = 1F , Bore min = 10 mm , Bore max = 42 mm ,F = 30 mm , H = 65 mm , L = 40 mm
Price
Model
PHP 40 - AT10 - 36RSB
Model description
No. Teeth = 36
DIMENSIONS : Diameter (P.D.) = 114.6 mm , Pulley Type = 1F , Bore min = 10 mm , Bore max = 45 mm ,F = 30 mm , H = 70 mm , L = 40 mm
Price
Model
PHP 40 - AT10 - 38RSB
Model description
No. Teeth = 38
DIMENSIONS : Diameter (P.D.) = 121.0 mm , Pulley Type = 1F , Bore min = 10 mm , Bore max = 48 mm ,F = 30 mm , H = 75 mm , L = 40 mm
Price
Model
PHP 40 - AT10 - 40RSB
Model description
No. Teeth = 40
DIMENSIONS : Diameter (P.D.) = 127.3 mm , Pulley Type = 1F , Bore min = 10 mm , Bore max = 10 mm ,F = 30 mm , H = 80 mm , L = 40 mm
Price
Model
PHP 40 - AT10 - 42RSB
Model description
No. Teeth = 42
DIMENSIONS : Diameter (P.D.) = 133.7 mm , Pulley Type = 1 , Bore min = 10 mm , Bore max = 57 mm ,F = 30 mm , H = 80 mm , L = 40 mm
Price
Model
PHP 40 - AT10 - 44RSB
Model description
No. Teeth = 44
DIMENSIONS : Diameter (P.D.) = 140.1 mm , Pulley Type = 1 , Bore min = 10 mm , Bore max = 57 mm ,F = 30 mm , H = 88 mm , L = 40 mm
Price
Model
PHP 40 - AT10 - 45RSB
Model description
No. Teeth = 45
DIMENSIONS : Diameter (P.D.) = 143.2 mm , Pulley Type = 1 , Bore min = 16 mm , Bore max = 59 mm ,F = 30 mm , H = 95 mm , L = 40 mm
Price
Model
PHP 40 - AT10 - 48RSB
Model description
No. Teeth = 48
DIMENSIONS : Diameter (P.D.) = 152.8 mm , Pulley Type = 1 , Bore min = 16 mm , Bore max = 59 mm ,F = 30 mm , H = 95 mm , L = 40 mm
Price
Model
PHP 40 - AT10 - 60RSB
Model description
No. Teeth = 60
DIMENSIONS : Diameter (P.D.) = 191.0 mm , Pulley Type = 1 , Bore min = 16 mm , Bore max = 16 mm ,F = 30 mm , H = 110 mm , L = 40 mm
Price
