Couplings size XXX

Hup = PHE L035HUB

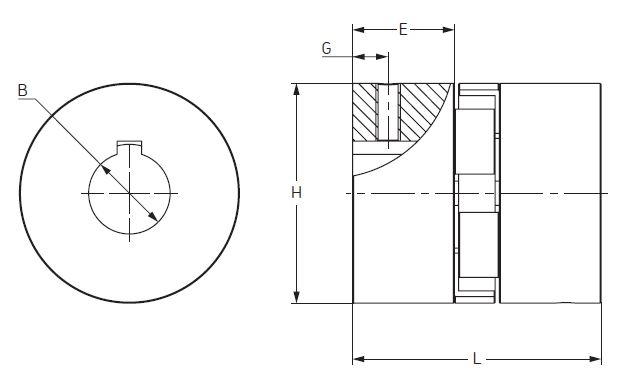

DIMENSIONS : B (Pilot = 3.20 mm , max. = 9.5 mm) , OD = 15.9 mm , L = 20.6 mm, E = 6.7 mm , H = 15.9 mm

Hup = PHE L050HUB
DIMENSIONS : B (Pilot = 6.35 mm , max. = 14.0 mm) , OD = 27.5 mm , L = 44.0 mm, E = 16.0 mm , H = 27.5 mm

Hup = PHE L070HUB
DIMENSIONS : B (Pilot = 6.35 mm , max. = 19.0 mm) , OD = 35.0 mm , L = 51.0 mm, E = 19.0 mm , H = 35.5 mm

Hup = PHE L075HUB
DIMENSIONS : B (Pilot = 6.35 mm , max. = 24.0 mm) , OD = 44.5 mm , L = 54.0 mm, E = 21.0 mm , H = 44.5 mm

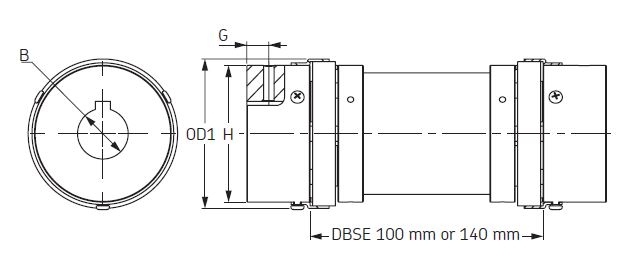

Hup = PHE L090HUB Ring Kit = PHE L090RINGKIT Spacar Size = 100 mm & 140 mm
DIMENSIONS : B (Pilot = 6.35 mm , max. = 24.0 mm) , OD = 54.0 mm , L = 54.0 mm, E = 21.0 mm , H = 54.0 mm

Hup = PHE L095HUB Ring Kit = PHE L095RINGKIT Spacar Size = 100 mm & 140 mm
DIMENSIONS : B (Pilot = 11.11 mm , max. = 28.0 mm) , OD = 54.0 mm , L = 64.0 mm, E = 25.0 mm , H = 54.0 mm

Hup = PHE L0100HUB Ring Kit = PHE L100RINGKIT Spacar Size = 100 mm & 140 mm
DIMENSIONS : B (Pilot = 12.70 mm , max. = 35.0 mm) , OD = 65.0 mm , L = 89.0 mm, E = 35.0 mm , H = 65.0 mm

Hup = PHE L0110HUB Ring Kit = PHE L110RINGKIT Spacar Size = 100 mm & 140 mm
DIMENSIONS : B (Pilot = 15.87 mm , max. = 42.0 mm) , OD = 84.0 mm , L = 108.0 mm, E = 43.0 mm , H = 84.0 mm

Hup = PHE L0150HUB Ring Kit = PHE L150RINGKIT Spacar Size = 100 mm & 140 mm
DIMENSIONS : B (Pilot = 15.87 mm , max. = 48.0 mm) , OD = 96.0 mm , L = 115 mm, E = 45.0 mm , H = 96.0 mm

Hup = PHE L0190HUB Ring Kit = PHE L190RINGKIT Spacar Size = 100 mm & 140 mm
DIMENSIONS : B (Pilot = 19.05 mm , max. = 55.0 mm) , OD = 115.0 mm , L = 133.0 mm, E = 54.0 mm , H = 102.0 mm

Hup = PHE L0225HUB Ring Kit = PHE L225RINGKIT Spacar Size = 100 mm & 140 mm
DIMENSIONS : B (Pilot = 19.05 mm , max. = 60.0 mm) , OD = 127.0 mm , L = 153.0 mm, E = 64.0 mm , H = 108.0 mm
